High quality hot-sale electric winch CT2354,12V electric winch

Categories	Electrical Winch
Brand	ATLI
Model	CT2354
Power Source	Electric
Application	Auto
Capacity	2000LB
Name	belt winch
Other name	popular belt winch
Unit Price	US $ 10-30 / set
FOB port	SHANGHAI/NINGBO
Terms of Payment	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Update Time	Nov 23,2024

Contact Now

Favorites

Detail Information

Multifunctional popular belt winch

Electric Winch CT2354

12V DC
Capacity:9500 lbs (4309kgs)
Permanent Magnet Motor:12V input:3.5kw/4.7hp, output:2.7kw/3.6hp. 24V input:4.6kw/6.2hp,output:3.0kw/4.0hp
Gear Reduction Ratio:294:1(12V);210:1(24V)
Soleniod:12V 230A / 24V 110A waterproof
Steel cable:9.2 mm×29m)
Drum size:63mm×227m
Mounting bolt pattern:10"×4.5"(254mm×114.3m)4-M10
Overall dimension:570mm×180mm×240mm
1pc 4wd roller fairlead
1pc wireless remote control
1pc 3m remote control
1pc Solenoid box assembly
1bag hardware
Each pc in brown box with instruction manual

Winches can be installed on automobiles ranging from cars to trucks. These winches are heavy duty and are either manual crank winches, in which the operator cranks in a circular motion to reel the winch cord up, or electric winches, which operate with electricity or a battery to reel the winch cord up. These winches can be used to pull out other cars that are stuck, or to pull out the car with the winch, if it is stuck itself. Winches installed on automobiles can also pull pieces of equipment or trailers behind the automobile at a slow speed, or help to remove brush, stones or other large, heavy objects to which the winch cord is connected.

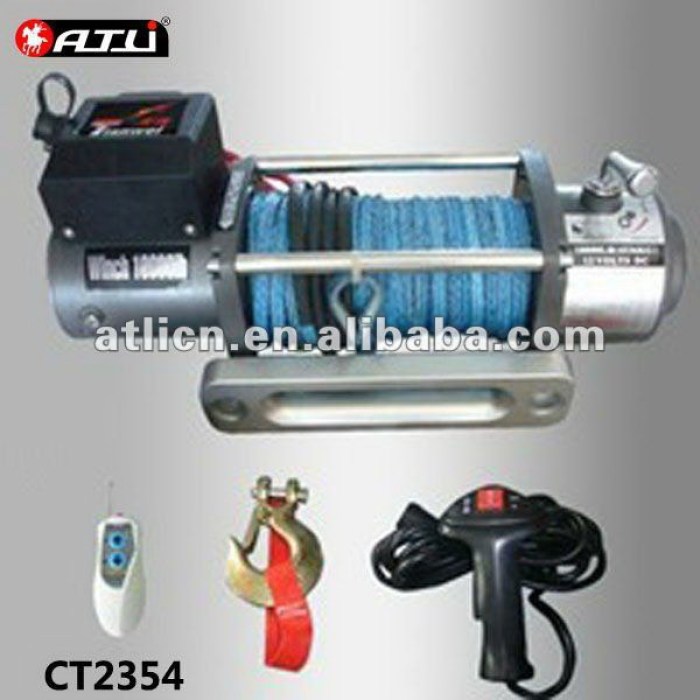

belt winch picture

Multifunctional belt winch electric winch capstan winch

Notice:

1) Do not use winch as a hoist, do not use for transportation of people.

2) do not operate and spool under full load over one minute continuously.

3) While motor is over heating, please stop for a while to cool down.

4) Limited lifetime warrantly

belt winch
