Product name	Car Short Circuit Detector
Combination	Car diagnostic
Warranty	12 Months
Application	Car Repair Tool Tester
Voltage	9V
Unit Price	US $ 19.29-24.5 / piece
FOB port	NINGBO ,SHANGHAI,TIANJIN
Terms of Payment	L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time	Nov 23,2024

Contact Now

Favorites

Detail Information

Product Description

Essential details

Type:: Car Short Finder

Voltage:: 9V

Combination:: car diagnostic

Place of Origin:: Zhejiang, China

Brand Name:: DUOYI

Model Number:: DY25

Warranty:: 12 Months

Product Name:: Car Short Circuit Detector

Size:: 15X10X5 cm

Application:: Car Repair Tool Tester

Keywords:: Car Line Finder

Product Details

1.Identify and track lines to determine short-circuit and open-circuit points
2.3.5mm Headphone Interface Increases Hearing Recognition in Loud Environment
3.24.8cm long probe hose for easier operation

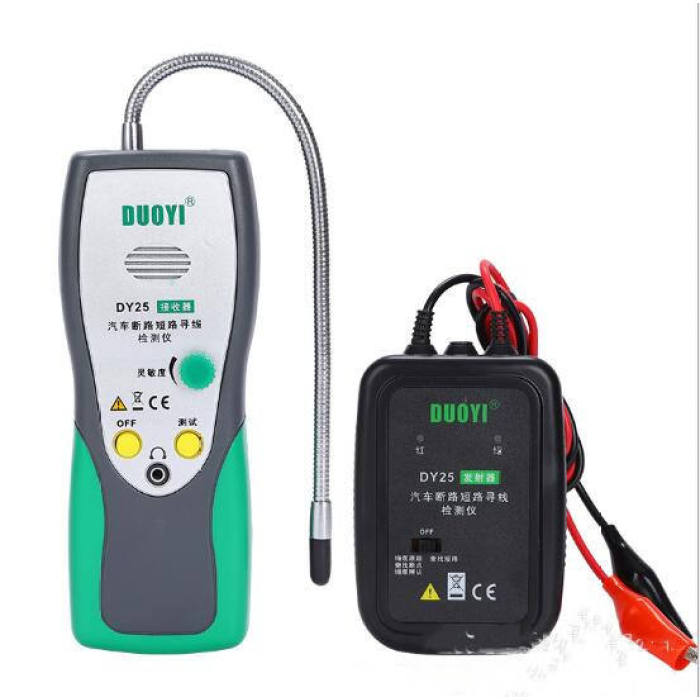

This instrument can check the cable break point without damaging the insulation layer Find the short-circuit cable, identify and track the wire, the instrument is issued by a Device and receiver components

Bend the receiver probe to better detect cables in crowded and narrow environments, based on electricity Road characteristics and
sensitivity settings, the probe can be picked up in a certain range of cable The detection head is placed above or below the cable
vertical (90 degrees)

Receiver sensitivity adjustment
Adjusting the sensitivity knob clockwise will improve the sensitivity of the receiver
Adjusting the sensitivity knob counterclockwise will reduce the sensitivity of the receiver

How to use cable tracking

Use the transmitter to find the short-circuit cable
1. Disconnect all load and power in the line under test
2. Dial the switch to find the line position, connect the test wire to the tested cable or wire, and the green light will light up
when the line resistance is less than 10k ohm (indicates the short circuit of the tested circuit or wire)
3. After checking, disconnect the test wire and turn off the power

Check Line Breakpoint

Ejector:Small size Streamlined structure Rationalization design One switch Multiple functions Easy to use Simple operation

Wire Alligator clip :750mm ultra-long test wire Easy to use High hardness Not easy to break Alligator clip Strong bite force
Insulation design

Probe hose :24.8mm ultra-long test hose Metal Material Bending and stretching will not break Anti-rust
Battery replacement :9V Battery Power Remove the back screw Open the back cover and install the battery Available

Notes
1. It can only be used for DC voltage, and cannot be connected to a DC voltage greater than 42V in any environment
2. Not for AC voltage
3. Not for direct or indirect circuits connected to AC cables or any AC power supply
4. Can not be used with any ignition circuits and components
5. Before using this instrument to detect a car cable, disconnect any component or subsystem, such as air sac, that is sensitive
to voltage or current pulses
6. Any part or subsystem of a car must be disconnected in accordance with the relevant rules for the maintenance of the car and
the requirements of the car maintenance manual
7. Please read the instructions carefully before use

Use of headphones in noisy environments

When in a noisy environment Breakpoint inspection, cable tracking and identification in order to avoid noise impact judgment
Earphones with 3.5mm plugs for listening Judgment

Use Steps :Insert the receiver's sensitivity before inserting the headset Set to the minimum, then insert the headset to detect sensitivity Gradually increase to moderate volume

PACKING LIST

DY25 Sender 1 pcs
DY25 Receiver 1 pcs
User manual 1 pcs（in English）
Oxford handbag 1 pcs
